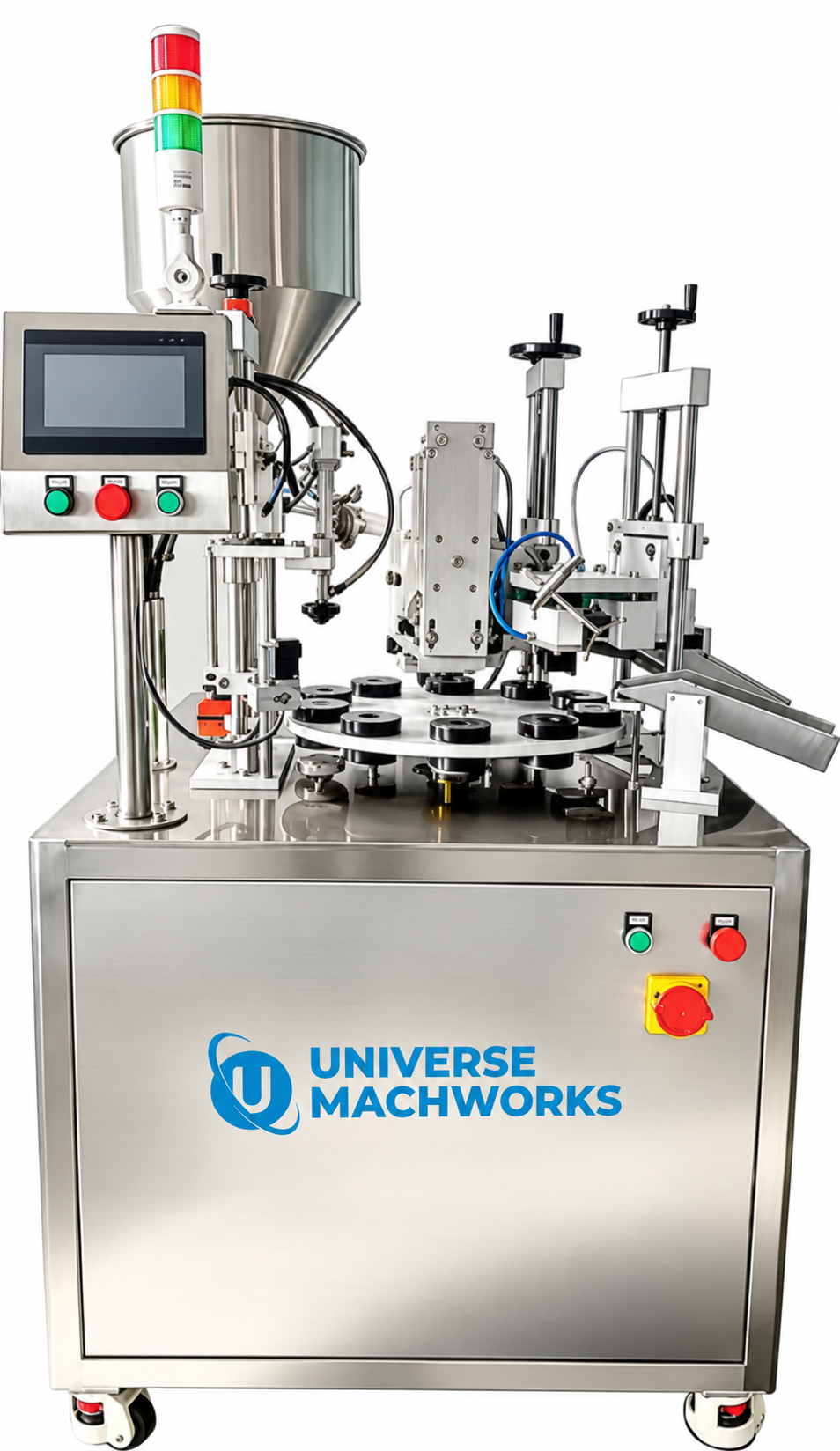

Automatic Ultrasonic Tube Filling and Sealing Machine
An integrated system for controlled filling, reliable tube handling, ultrasonic sealing, and organized production of compatible tube-packaged products.
The Automatic Ultrasonic Tube Filling and Sealing Machine is designed for automated filling and sealing of suitable products packed in tubes. It combines tube handling, product filling, tube positioning, sealing, and discharge operations into an integrated system.
With stainless-steel construction, automated operating controls, filling assembly, tube-handling mechanism, and sealing arrangement, the machine suits applications where consistent tube processing and an organized production workflow are required.
It can be considered for pharmaceutical, cosmetic, nutraceutical, personal-care, and other compatible products. Its compact industrial configuration supports environments where controlled filling, reliable tube handling, and consistent sealing are important.
Watch the Machine in Action
Key Features
- Automatic tube filling and sealing operation
- Ultrasonic sealing system
- Stainless-steel machine construction
- Integrated product filling arrangement
- Automatic tube positioning
- Rotary tube-handling mechanism
- PLC/HMI-based control arrangement
- Operator control panel
- Product filling assembly
- Tube sealing station
- Safety-oriented machine controls
- Compact and organized machine layout
- Easy access to major operating components
- Suitable for pharmaceutical and allied industries
- Configuration can be customized according to application requirements
Working Principle
The machine operates through a sequence of automated tube-handling and filling operations.
Step 1
Tube Loading
Empty tubes are introduced into the machine's tube-handling system.
Step 2
Tube Positioning
The machine positions tubes correctly before filling. Accurate positioning helps maintain consistency during filling and sealing.
Step 3
Product Filling
Product is supplied to the filling system and introduced into the tube. The system is configured for the product characteristics and required filling parameters.
Step 4
Tube Transfer
After filling, the automated handling mechanism moves the tube to the sealing section.
Step 5
Ultrasonic Sealing
High-frequency mechanical vibrations generate localized heat at the sealing interface, allowing suitable thermoplastic tubes to be sealed without relying solely on conventional external heating. Parameters depend on tube material, product, dimensions, and configuration.
Step 6
Finished Tube Discharge
The sealed tube is transferred to the discharge area for collection or downstream processing.
Applications
The machine can fill and seal suitable products in tube packaging formats. Exact suitability depends on product characteristics, tube material, filling system, and process requirements.
Pharmaceutical Applications
- Ointments
- Creams
- Gels
- Pharmaceutical formulations
- Topical products
- Semi-solid formulations
Cosmetic Applications
- Cosmetic creams
- Skin-care products
- Hair-care formulations
- Lotions
- Gels
- Personal-care products
Nutraceutical & Herbal Applications
- Herbal products
- Nutraceutical formulations
- Wellness products
- Topical preparations
Industries Served
- Pharmaceutical
- Cosmetic
- Nutraceutical
- Herbal
- Personal Care
- Healthcare
- Chemical
- Specialty formulation industries
Machine configuration should be selected according to the specific product and packaging requirements.
Machine Construction
The predominantly stainless-steel construction is suited to industrial processing and packaging environments where hygienic surfaces and easy maintenance are important.
- Stainless-steel machine body
- Stainless-steel product-contact and processing components as specified
- Integrated control panel
- Filling mechanism
- Tube-handling assembly
- Ultrasonic sealing arrangement
- Safety and control switches
- Mobile caster arrangement
Final material of construction and surface finish should be confirmed for the customer's application.
Control System
The operator control panel includes a display interface and control buttons. Depending on the final configuration, functions may include:
- Machine start/stop
- Operating parameter adjustment
- Filling control
- Sealing control
- Tube-positioning control
- Alarm indication
- Machine status monitoring
- Emergency stop
Exact PLC, HMI, automation brand, and control functions should be confirmed in the final technical specification.
Why Ultrasonic Tube Sealing?
Ultrasonic sealing can provide an efficient method of sealing compatible thermoplastic tubes.
Controlled Sealing
The sealing process can be controlled through appropriate machine parameters.
Reduced Dependence on External Heating
Localized heat is generated at the sealing interface through mechanical vibration.
Clean Sealing Process
For suitable applications, ultrasonic sealing can provide a clean and controlled operation.
Consistent Tube Sealing
Correct configuration for the tube and application can provide repeatable sealing.
Suitable for Automated Production
Ultrasonic sealing integrates directly into automated tube filling and sealing equipment.
Actual performance depends on tube material, dimensions, product, tooling, and operating parameters.
Suitable Tube Types
Compatibility must be confirmed before machine selection. Suitable thermoplastic tube formats depend on:
- Tube material
- Tube diameter
- Tube length
- Tube wall characteristics
- Product compatibility
- Sealing requirements
- Tube closure design
Customers should provide tube samples or complete specifications for compatibility evaluation.
Product Compatibility
The filling system should match the formulation's physical characteristics:
- Viscosity
- Flowability
- Density
- Particle content
- Temperature sensitivity
- Product consistency
- Foaming characteristics
A cream, ointment, gel, or liquid may require different filling considerations; one configuration should not be assumed to suit every formulation.
Benefits of Automatic Tube Filling and Sealing
1
Automated Operation
Multiple tube-processing operations are integrated into one machine.
2
Consistent Processing
Automated positioning and filling can help provide repeatable production conditions.
3
Integrated Sealing
Filling and sealing are carried out within the same machine system.
4
Reduced Manual Handling
Automation can reduce manual tube handling during production.
5
Compact Configuration
The integrated arrangement organizes filling and sealing within a relatively compact footprint.
6
Stainless-Steel Construction
Suitable for industrial and hygienic equipment surfaces, subject to specified material and finish.
7
Operator-Friendly Controls
The integrated panel allows operators to monitor and control machine operation.
Important Factors Before Purchasing
Define the required filling accuracy according to product and packaging requirements, then evaluate these details with the manufacturer:
Product
- Product type
- Viscosity
- Density
- Temperature
- Particle content
- Filling characteristics
Tube
- Tube material
- Tube diameter
- Tube length
- Tube volume
- Tube shape
- Sealing requirements
Production Requirement
- Required output
- Batch size
- Operating hours
- Automation level
- Future production requirements
Sealing
- Sealing method
- Ultrasonic parameters
- Tube material compatibility
- Seal appearance
- Required sealing strength
Machine Configuration
- Filling heads
- Tube handling
- Control system
- Product-contact material
- Machine dimensions
- Safety features
- Cleaning requirements
Automatic vs Manual Tube Filling
| Feature | Manual Filling | Automatic Tube Filling & Sealing |
|---|---|---|
| Tube handling | Manual | Automated |
| Filling | Manual/operator controlled | Automated |
| Sealing | Manual/separate process | Integrated |
| Production workflow | More operator dependent | More automated |
| Process consistency | Operator dependent | More controlled |
| Labor requirement | Higher | Lower relative manual handling |
| Suitable applications | Small/trial operations | Automated production requirements |
The appropriate solution depends on production volume, product characteristics, investment requirements, and automation objectives.
Cleaning & Maintenance
Regular cleaning and preventive maintenance support reliable operation. The maintenance program should consider:
- Product-contact components
- Filling nozzles
- Tubing
- Pumps or filling mechanisms
- Sealing tooling
- Tube-handling components
- Sensors
- Pneumatic components
- Electrical controls
- Moving mechanical parts
Establish cleaning procedures for the product, machine construction, and facility requirements, following the manufacturer's instructions.
Safety Features
The machine can be configured with safety and control features based on its final design:
- Emergency stop
- Safety switches
- Machine guarding
- Operator controls
- Alarm indication
- Interlocks where applicable
The exact safety configuration should be confirmed in the technical specification.
Customization Options
Production requirements vary across pharmaceutical and cosmetic manufacturers. Configuration can be discussed around:
- Tube dimensions
- Product type
- Filling arrangement
- Filling volume
- Machine layout
- Control system
- Material of construction
- Product-contact components
- Sealing configuration
- Automation requirements
Customization should be finalized after evaluating the customer's product, tube specifications, and production requirements.
Why Choose Universe Mach Works?
Universe Mach Works manufactures and supplies pharmaceutical and process machinery for pharmaceutical and allied industries. This machine is designed as an integrated solution where controlled product filling and tube sealing are required.
Configuration can be discussed according to product characteristics, tube specifications, filling and production requirements, material of construction, automation, and installation requirements.
The company also provides machinery across mixing, blending, granulation, drying, milling, sieving, tablet processing, capsule processing, liquid processing, and filtration.
Frequently Asked Questions
What is an automatic ultrasonic tube filling and sealing machine?+
It is an automated machine designed to fill compatible products into tubes and subsequently seal the tubes using an ultrasonic sealing system.
What products can be filled into tubes?+
Depending on the filling configuration, the machine can be used for suitable creams, ointments, gels, liquids, and other compatible pharmaceutical, cosmetic, nutraceutical, or personal-care formulations.
What is ultrasonic tube sealing?+
Ultrasonic tube sealing uses high-frequency mechanical vibrations to generate localized heat at the sealing interface of a compatible thermoplastic tube.
Is the machine suitable for pharmaceutical applications?+
Yes, the machine can be configured for suitable pharmaceutical tube-filling applications. Product, tube, material-of-construction, cleaning, and process requirements should be evaluated before finalizing the machine.
Can the machine be customized?+
Yes. Machine configuration can be discussed according to product characteristics, tube dimensions, filling requirements, automation, and production requirements.
What information is required before ordering?+
Customers should ideally provide the product details, filling volume, tube dimensions and material, required output, and any specific sealing or automation requirements.
Can it fill cosmetic creams and gels?+
The machine can be considered for compatible cosmetic creams and gels, subject to their viscosity, formulation characteristics, tube specifications, and filling-system requirements.
Conclusion
The Automatic Ultrasonic Tube Filling and Sealing Machine provides an integrated solution for automated filling and sealing of suitable tube-packaged products.
Its stainless-steel construction, automated tube handling, filling arrangement, ultrasonic sealing system, and operator interface make it suitable for compatible pharmaceutical, cosmetic, nutraceutical, and personal-care applications.
The correct configuration should be selected according to product, tube specifications, filling volume, production output, sealing requirements, and automation level. Universe Mach Works can provide equipment configuration and technical guidance based on the application.
Discuss Your Tube Filling and Sealing Requirements
Share your product, tube specifications, filling volume, output, and automation requirements with Universe Mach Works.
