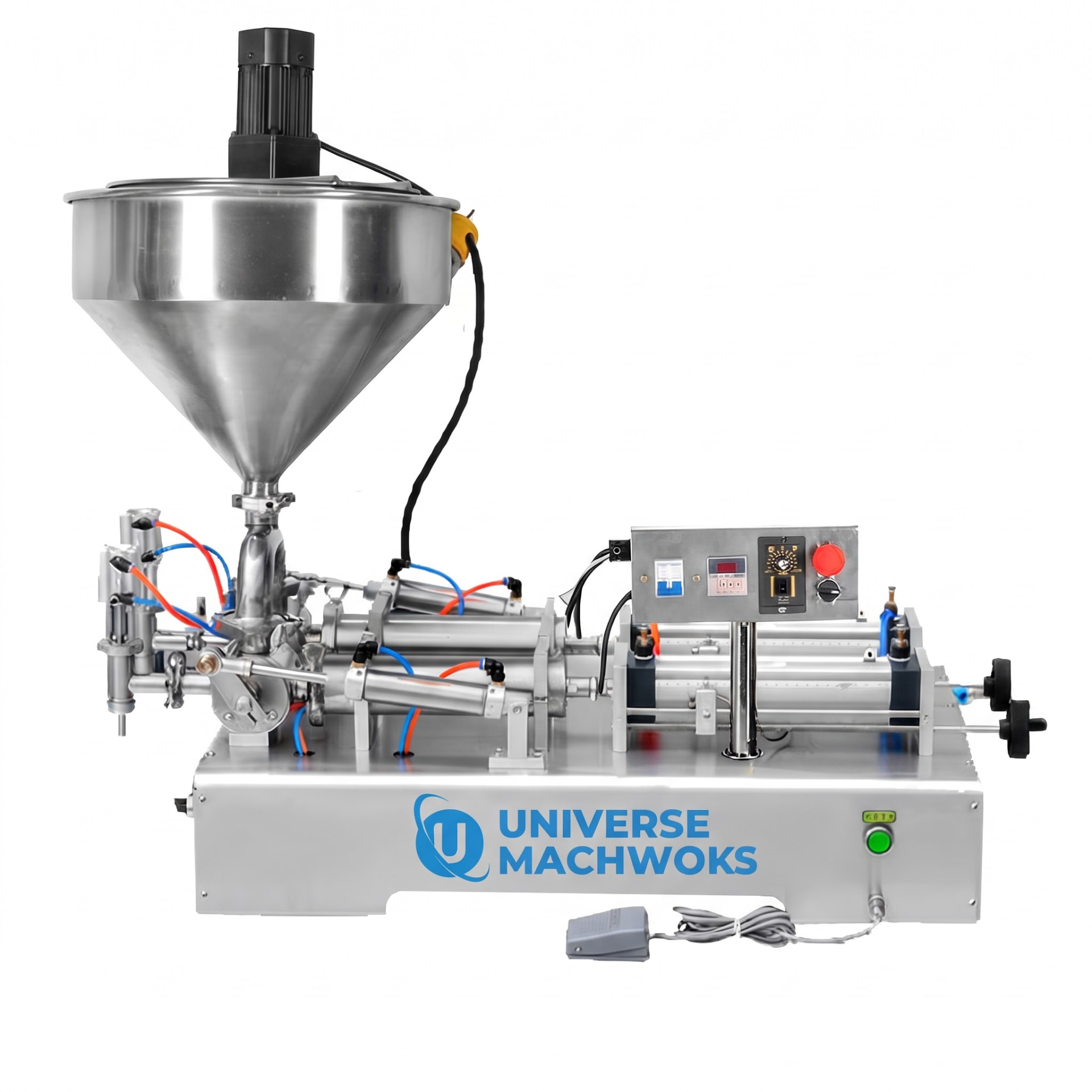

Pneumatic Paste Filler Machine
Controlled and efficient filling of pastes, creams, gels, ointments, viscous liquids, and compatible semi-solid products.
The Pneumatic Paste Filler Machine is designed for controlled and efficient filling of pastes, creams, gels, ointments, viscous liquids, and other compatible semi-solid products into containers, bottles, jars, tubes, or other suitable packaging formats.
Using a pneumatic operating system, the machine provides controlled filling through a pneumatic cylinder and filling mechanism. It is suited to applications where consistent filling, hygienic construction, and straightforward operation are important.
Universe Mach Works manufactures and supplies pharmaceutical and process machinery for pharmaceutical, cosmetic, nutraceutical, food, chemical, herbal, and other industrial applications.
What Is a Pneumatic Paste Filler Machine?
A Pneumatic Paste Filler Machine uses compressed air to operate its filling mechanism and dispense a predetermined quantity of paste or viscous product. Unlike gravity-based systems, it uses controlled pneumatic movement to push the product through the filling nozzle.
- Pharmaceutical ointments
- Creams
- Gels
- Pastes
- Cosmetic products
- Herbal formulations
- Food pastes
- Thick sauces
- Semi-solid formulations
- Other compatible viscous products
The appropriate filling system depends on viscosity, flow characteristics, container type, filling volume, and production requirements.
Watch the Pneumatic Paste Filler Machine in Action
Pneumatic Paste Filler Machine Working Principle
The working principle is based on compressed air operating a pneumatic cylinder and filling mechanism.
Product Loading
The paste or viscous product is loaded into the machine's product hopper or filling reservoir. The product should have suitable flow characteristics for the selected filling system.
Pneumatic System Activation
Compressed air is supplied to the pneumatic cylinder. The pneumatic actuator moves the filling mechanism according to the machine's operating cycle.
Product Drawing
During the suction or filling stage, the filling system draws the required quantity of product into the filling chamber.
Filling Stroke
The pneumatic mechanism moves through the filling stroke, pushing the measured quantity of product toward the filling nozzle.
Product Dispensing
The product is discharged through the nozzle into the container.
Repetition
After the filling cycle is completed, the mechanism returns to its initial position and the next filling cycle begins.
Actual filling accuracy depends on machine configuration, product properties, filling volume, operating conditions, and correct adjustment.
Main Components
Product Hopper
Stores the paste before filling and can be configured in stainless steel to the required capacity.
Filling Cylinder
The filling cylinder or chamber controls the quantity of product delivered during each cycle.
Pneumatic Cylinder
Provides the mechanical movement required for filling by using compressed air.
Filling Nozzle
Delivers the product into the container, with configurations selected for product viscosity and container design.
Control System
Provides controls for operating the filling cycle and adjusting relevant machine parameters.
Pneumatic Controls
May include an air regulator, pressure gauge, valves, tubing, fittings, and other air-control components.
Machine Frame
Supports the filling system and can use stainless-steel construction for pharmaceutical and hygienic applications.
Features of Pneumatic Paste Filler Machine
- Pneumatic operating mechanism
- Controlled paste filling
- Adjustable filling volume
- Stainless-steel construction options
- Simple operating principle
- Easy-to-operate controls
- Suitable for viscous and semi-solid products
- Product-specific filling nozzles
- Compact machine configurations
- Easy cleaning and maintenance
- Customizable filling arrangements
- Application-specific machine design
Exact features vary according to the model and customer requirements.
Applications of Pneumatic Paste Filling Machine
Pharmaceutical Industry
- Ointments
- Creams
- Gels
- Pharmaceutical pastes
- Topical formulations
- Other compatible semi-solid products
Cosmetic Industry
- Cosmetic creams
- Skin-care products
- Hair-care formulations
- Cosmetic gels
- Thick lotions
- Other viscous cosmetic products
Food Industry
- Food pastes
- Thick sauces
- Spreads
- Condiments
- Other compatible viscous food products
Herbal & Ayurvedic Products
- Herbal pastes
- Ayurvedic formulations
- Herbal creams
- Semi-solid preparations
Chemical Industry
- Compatible industrial products requiring controlled filling of viscous materials
Advantages of a Pneumatic Paste Filler Machine
Consistent Filling
The controlled mechanism helps provide consistent dispensing when correctly adjusted for the product.
Suitable for Viscous Products
The system can be configured for a variety of pastes, creams, gels, and semi-solid products.
Simple Pneumatic Operation
The pneumatic principle provides straightforward mechanical movement and operation.
Adjustable Filling Volume
Filling volume can be adjusted according to the required product quantity and machine design.
Hygienic Construction Options
Stainless-steel construction and suitable product-contact components can be specified for hygienic processing.
Customizable
Configuration can be matched to the product, filling volume, container, nozzle, output, layout, and automation level.
Frequently Asked Questions
What products can a Pneumatic Paste Filler Machine fill?+
It can be configured for compatible ointments, creams, gels, pastes, thick sauces, herbal formulations, and other viscous or semi-solid products.
How does a pneumatic paste filling machine work?+
Compressed air operates a pneumatic cylinder that draws a measured quantity into the filling chamber and pushes it through the nozzle into the container.
Can the filling volume be adjusted?+
Yes. The filling volume can be adjusted within the selected machine model's range to suit the required pack size.
Is stainless-steel construction available?+
Yes. Stainless-steel construction and suitable product-contact components can be specified according to the application and hygiene requirements.
Can the machine be customized?+
Yes. The hopper, nozzle, filling range, container arrangement, layout, and automation level can be configured for the application.
Need a Pneumatic Paste Filler Machine for your product?
Share your product, container, filling range, and output requirements with Universe Mach Works.
