In pharmaceutical manufacturing, achieving a consistent particle size is one of the most important steps in producing high-quality tablets, capsules, powders, granules, and other dosage forms. Whether the goal is size reduction, de-lumping, granulation, or uniform mixing, a Multi Mill Machine plays a crucial role in the production process.
Known for its versatility, efficiency, and gentle size reduction capabilities, a Multi Mill has become a standard piece of equipment across pharmaceutical, food processing, chemical, cosmetic, nutraceutical, and herbal manufacturing industries.
This comprehensive guide explains everything you need to know about Multi Mill Machines, including their working principle, applications, advantages, components, operating process, maintenance, buying guide, and frequently asked questions.
What is a Multi Mill Machine?
A Multi Mill Machine is a high-speed size reduction and granulation machine used for wet and dry milling operations. It reduces oversized particles into uniform granules without generating excessive heat or damaging product characteristics.
Unlike traditional grinding equipment, a Multi Mill performs multiple operations such as particle size reduction, granulation, de-lumping, pulverizing, mixing assistance, and uniform particle distribution.
Its compact design and high productivity make it one of the most commonly used machines in pharmaceutical manufacturing plants.
Working Principle of a Multi Mill Machine
The working principle of a Multi Mill is based on high-speed impact and shear force. Material is fed into the milling chamber where rotating blades strike the particles against a perforated screen. The repeated impact reduces particle size until the material becomes small enough to pass through the selected screen.
The final particle size depends on rotor speed, blade design, screen hole diameter, product characteristics, and feed rate. This method produces highly uniform granules with minimal dust generation.

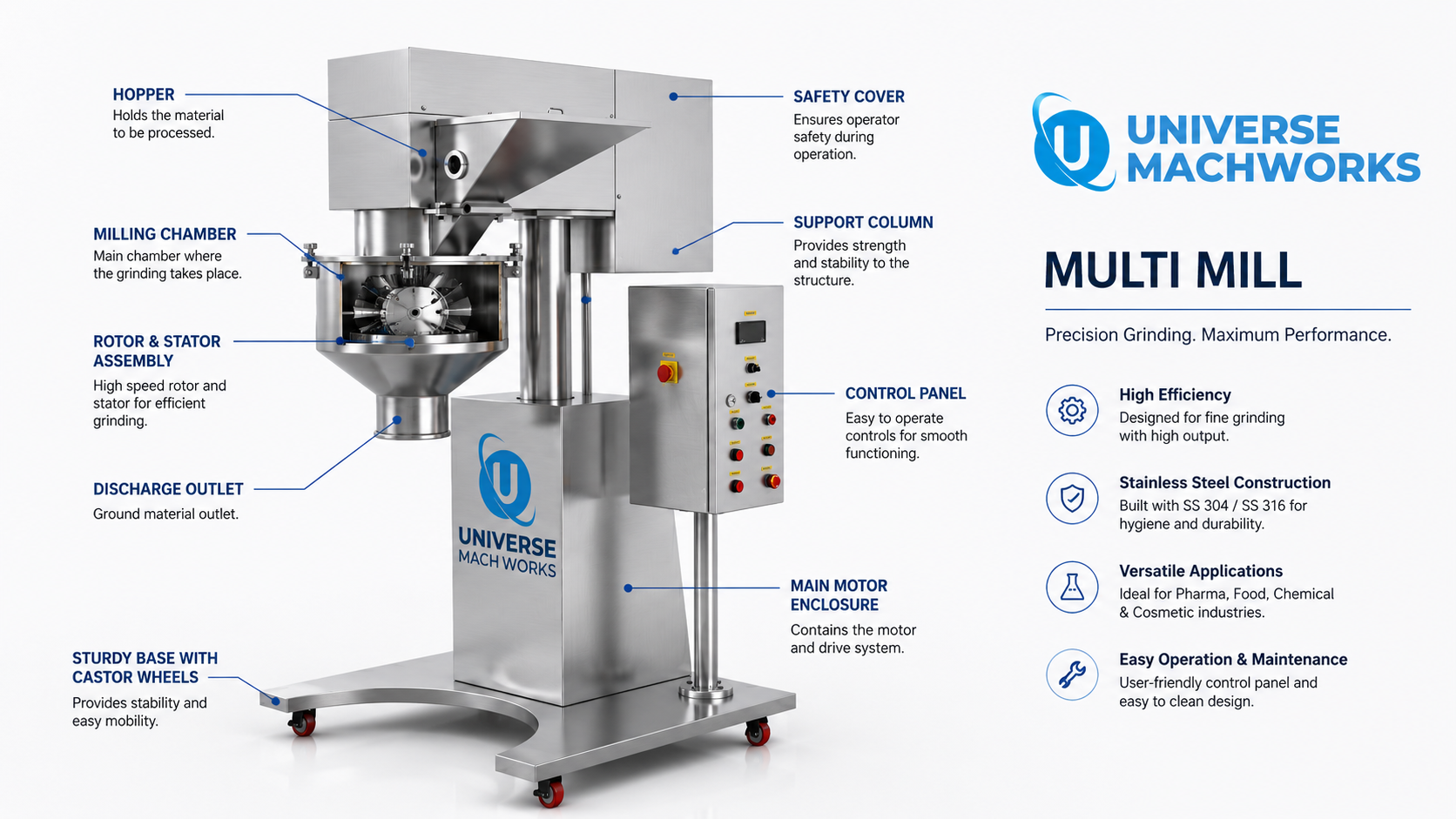

Main Components of a Multi Mill Machine
- Feed Hopper
- Milling Chamber
- Rotor Assembly
- Beater Blades
- Perforated Screen
- Discharge Outlet
- Electric Motor
- Control Panel
- Stainless Steel Body (SS304 / SS316)
Step-by-Step Working Process
Step 1 – Material Feeding
Raw material enters through the feed hopper.
Step 2 – Rotor Activation
Rotor blades begin rotating at high speed.
Step 3 – Impact & Shear
Material is repeatedly impacted by the blades and struck against the perforated screen.
Step 4 – Screening
Only particles smaller than the screen opening pass through.
Step 5 – Discharge
Uniform granules are discharged into collection containers.
Types of Multi Mill Machines
- Pharmaceutical Multi Mill – GMP-compliant for tablet & capsule manufacturing.
- Food Grade Multi Mill – spices, flour, seasonings and food powders.
- Chemical Multi Mill – pigments, dyes and fine industrial powders.
- Herbal Multi Mill – Ayurvedic herbs and botanical extracts.
- Cosmetic Multi Mill – creams, face powders and cosmetic ingredients.
Applications of Multi Mill Machines
Pharmaceutical Industry
- Tablet granulation
- Capsule powder preparation
- API size reduction
- Dry granulation
- Wet granulation
- Powder blending support
Food Industry
- Spice milling
- Sugar processing
- Protein powder preparation
- Seasoning blends
- Instant food powders
Cosmetic Industry
- Face powders
- Herbal powders
- Cosmetic granules
- Beauty formulations
Chemical Industry
- Pigments
- Fertilizers
- Resins
- Industrial chemicals
Nutraceutical Industry
- Protein supplements
- Herbal powders
- Vitamin blends
- Dietary supplements
Advantages of a Multi Mill Machine
- Uniform particle size
- High production capacity
- Low heat generation
- Gentle size reduction
- Easy operation
- Low maintenance
- Minimal dust formation
- Hygienic GMP construction
- Quick cleaning
- Compact design
- Energy-efficient operation
- Low noise levels
- Suitable for wet and dry materials
- Long service life
Features of Universe Mach Works Multi Mill Machine
- SS304 / SS316 construction
- GMP-compliant design
- Heavy-duty motor
- Easy screen replacement
- Variable particle size control
- High-speed rotor
- Low vibration
- User-friendly controls
- Easy dismantling for cleaning
- Corrosion-resistant finish
- Robust construction
- Custom capacity options
Industries Using Multi Mill Machines
- Pharmaceutical manufacturing
- Nutraceutical plants
- Ayurvedic medicine production
- Food processing
- Chemical processing
- Cosmetic manufacturing
- Biotechnology
- Research laboratories
- Herbal extraction units
- Veterinary medicine production
Multi Mill vs Pulverizer
| Feature | Multi Mill | Pulverizer |
|---|---|---|
| Operation | Impact & Shear | Grinding |
| Heat Generation | Low | High |
| Product Uniformity | Excellent | Moderate |
| Wet Milling | Yes | No |
| Dry Milling | Yes | Yes |
| Granulation | Yes | No |
| Pharmaceutical Use | Excellent | Limited |
| Dust Generation | Low | Higher |
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | SS304 / SS316 |
| Capacity | Customized |
| Motor | Heavy Duty |
| Rotor Speed | Variable |
| Operation | Continuous |
| Screen Size | Interchangeable |
| Power Supply | 230V / 415V |
| Finish | Mirror / Matte |
| Compliance | GMP |
Factors to Consider Before Buying a Multi Mill
- Production capacity
- Material characteristics
- Required particle size
- Screen options
- Motor power
- Cleaning requirements
- GMP compliance
- Stainless steel grade
- Energy consumption
- Maintenance requirements
- Spare part availability
- Manufacturer support
Maintenance Tips
Daily
- Clean hopper
- Inspect blades
- Remove powder residue
Weekly
- Check screen condition
- Inspect motor
- Tighten fasteners
Monthly
- Lubricate moving parts
- Check electrical connections
- Inspect bearings
Annual
- Replace worn blades
- Service motor
- Calibrate controls
Common Problems and Solutions
| Problem | Cause | Solution |
|---|---|---|
| Uneven particle size | Damaged screen | Replace screen |
| Low output | Rotor wear | Replace blades |
| Excessive vibration | Loose components | Tighten fittings |
| Product heating | High speed | Reduce RPM |
| Noise | Bearing wear | Replace bearings |
Safety Guidelines
- Wear PPE
- Never open while running
- Use recommended screens
- Keep chamber clean
- Inspect before operation
- Follow maintenance schedule
- Ensure proper grounding
- Operate only by trained personnel
Why Choose Universe Mach Works?
Universe Mach Works manufactures premium pharmaceutical process equipment trusted by customers across India and international markets.
- GMP-compliant machines
- High-quality SS304/SS316 fabrication
- Custom-built solutions
- Reliable performance
- Competitive pricing
- After-sales support
- Spare parts availability
- On-time delivery
- Experienced engineering team
Explore the Product
Multi Mill by Universe Mach Works
View technical specifications, applications and request a customized quote.
View Multi MillFrequently Asked Questions
What is a Multi Mill Machine used for?+
It is used for size reduction, granulation, de-lumping, and uniform particle preparation in pharmaceutical, food, cosmetic, and chemical industries.
Can a Multi Mill perform wet and dry milling?+
Yes. It is suitable for both wet and dry granulation processes.
Which material is used to manufacture the machine?+
Pharmaceutical Multi Mills are typically made from SS304 or SS316 stainless steel.
How is particle size controlled?+
By changing the perforated screen size and adjusting rotor speed.
Is a Multi Mill GMP compliant?+
Yes, modern pharmaceutical Multi Mills are designed to meet GMP requirements.
What industries use Multi Mill Machines?+
Pharmaceutical, food, cosmetic, chemical, herbal, nutraceutical, and biotechnology industries.
What is the difference between a Multi Mill and a Pulverizer?+
A Multi Mill uses impact and shear for controlled granulation with lower heat generation, while a Pulverizer performs fine grinding and may generate more heat and dust.
Conclusion
A Multi Mill Machine is an indispensable solution for controlled size reduction and granulation in pharmaceutical and process industries. Its ability to deliver uniform particle size, support both wet and dry milling, minimize heat generation, and comply with GMP standards makes it a preferred choice for modern manufacturing facilities.
At Universe Mach Works, we design and manufacture robust, high-performance Multi Mill Machines tailored to your production requirements. Whether you're upgrading an existing production line or setting up a new facility, our machines provide reliability, efficiency, and long-term value.
Need a Multi Mill Machine for your manufacturing plant? Contact Universe Mach Works today for expert guidance, customized solutions, and competitive pricing.
