In modern pharmaceutical and process manufacturing, maintaining product quality begins with effective screening and separation. Whether you're producing tablets, powders, granules, food ingredients, chemicals, or cosmetic products, achieving a uniform particle size is essential for consistent quality and regulatory compliance.
A Vibro Sifter Machine is one of the most widely used screening machines in pharmaceutical, food, chemical, cosmetic, herbal, and nutraceutical industries. Designed for precision and efficiency, it removes oversized particles, contaminants, and foreign materials while ensuring uniform product quality throughout the production process.
At Universe Mach Works, we manufacture premium-quality Vibro Sifter Machines that combine GMP-compliant construction, robust engineering, and reliable performance for continuous industrial operations. Whether you require standard or customized solutions, our machines are designed to deliver maximum productivity with minimal maintenance.
What is a Vibro Sifter Machine?
A Vibro Sifter Machine is a circular vibrating screening equipment used to separate, classify, grade, and remove impurities from powders, granules, and liquids. The machine uses controlled vibrations generated by an unbalanced motor to move material across a mesh screen. Particles smaller than the mesh opening pass through the screen, while oversized particles remain on top for discharge.
Because of its high screening efficiency and hygienic stainless steel construction, the Vibro Sifter is considered an essential machine in pharmaceutical manufacturing.
How Does a Vibro Sifter Machine Work?
The working principle of a Vibro Sifter is based on controlled three-dimensional vibration generated by a specially balanced motor.
Step 1 – Material Feeding
Raw material enters the machine through the top inlet.
Step 2 – Vibratory Motion
The vibrating motor creates horizontal, vertical, and rotational movements. These vibrations spread the material evenly across the screen surface.
Step 3 – Screening
- Fine particles pass through the mesh.
- Oversized particles remain on top.
- Foreign contaminants are separated automatically.
Step 4 – Product Discharge
Accepted material exits from the lower outlet while rejected material exits separately. This continuous process delivers high screening efficiency with minimal product loss.

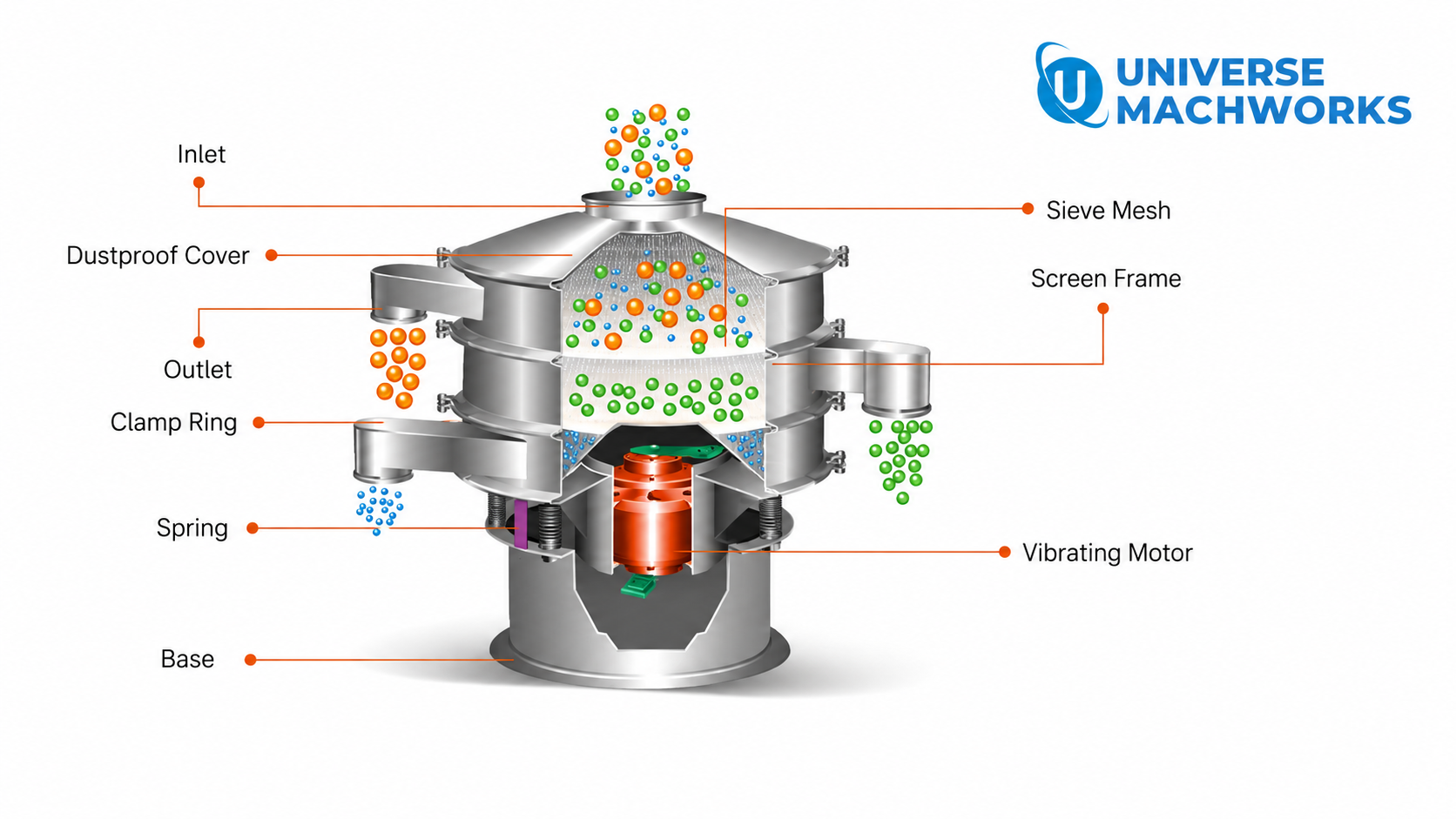

Main Components of a Vibro Sifter Machine
- Stainless Steel Body (SS304 / SS316L)
- Vibratory Motor
- Screening Mesh (customizable)
- Upper Cover
- Outlet Chamber
- Springs
- Quick-release Clamps
- Control Panel
Technical Specifications
| Feature | Specification |
|---|---|
| Construction | SS304 / SS316L |
| Capacity | 25–5000 Kg/hr |
| Screen Diameter | Customized |
| Motor | Vibratory Motor |
| Mesh Size | Customized |
| Power Supply | 230V / 415V |
| Surface Finish | Mirror / Matte Finish |
| Operation | Continuous |
| Compliance | GMP |
| Custom Sizes | Available |
Types of Vibro Sifter Machines
- Single Deck Vibro Sifter – ideal for basic screening operations.
- Double Deck Vibro Sifter – simultaneous separation into two grades.
- Multi Deck Vibro Sifter – multiple particle sizes in one pass.
- Inline Vibro Sifter – suitable for continuous production lines.
Applications of Vibro Sifter Machine
Pharmaceutical Industry
- Tablet granules
- Capsule powders
- API screening
- Excipient separation
Food Industry
- Flour
- Spices
- Sugar
- Milk powder
- Cocoa powder
Cosmetic Industry
- Face powder
- Talcum powder
- Cosmetic pigments
Chemical Industry
- Resins
- Pigments
- Minerals
- Industrial chemicals
Herbal & Nutraceutical Industry
- Ayurvedic powders
- Herbal extracts
- Protein powders
- Vitamin premixes
Advantages of Vibro Sifter Machine
- High screening efficiency
- Uniform particle size
- Continuous operation
- Low maintenance
- Easy cleaning
- GMP-compliant construction
- Compact footprint
- Low power consumption
- Dust-free operation
- Quiet performance
- Long service life
- Quick mesh replacement
- Corrosion resistance
- Hygienic design
- Minimal product wastage
- High throughput
Why Choose Universe Mach Works?
Universe Mach Works is a trusted manufacturer of pharmaceutical process machinery known for quality engineering and reliable performance.
- GMP-compliant manufacturing
- SS304 & SS316L construction
- Precision engineering
- High-quality vibratory motors
- Customizable mesh sizes
- Long equipment life
- Excellent after-sales support
- Competitive pricing
- Fast delivery across India and overseas
How to Choose the Right Vibro Sifter Machine
- Production Capacity – determine hourly production needs.
- Material Type – powder, granules, slurry, or liquid.
- Mesh Size – appropriate screen openings.
- Construction Material – SS316L for pharmaceutical applications.
- Number of Decks – single, double, or multiple screening levels.
- Cleaning Requirements – quick-release clamps reduce cleaning time.
- Automation – semi-automatic or fully automated operation.
- Compliance – ensure GMP and hygienic standards.
Maintenance Tips
- Clean mesh after every batch
- Inspect springs regularly
- Tighten clamps
- Lubricate bearings
- Check motor vibration
- Replace damaged mesh
- Inspect electrical wiring
- Monitor noise levels
- Verify balancing weights
- Avoid overloading
- Schedule preventive maintenance
Common Problems & Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Low output | Blocked mesh | Clean screen |
| Excess vibration | Loose springs | Tighten or replace |
| Product leakage | Loose clamps | Secure clamps |
| Mesh damage | Overloading | Replace mesh |
| Motor overheating | Continuous overload | Reduce load |
| Uneven screening | Incorrect balancing | Adjust motor weights |
Industries Served
- Pharmaceutical Manufacturing
- Food Processing
- Chemical Processing
- Cosmetic Manufacturing
- Nutraceutical Industry
- Herbal Products
- Ayurvedic Manufacturing
- Mineral Processing
- Fine Chemicals
- Agro Chemicals
Explore the Product
Vibro Sifter by Universe Mach Works
View technical specifications, applications and request a customized quote.
View Vibro SifterFrequently Asked Questions
What is a Vibro Sifter Machine?+
A Vibro Sifter Machine is a vibrating screening machine used to separate particles based on size.
How does a Vibro Sifter work?+
It uses a vibratory motor to create multi-directional vibrations that move material across a mesh screen.
What industries use Vibro Sifters?+
Pharmaceutical, food, cosmetic, chemical, herbal, nutraceutical, and mineral industries.
Which material is used for manufacturing?+
SS304 and SS316L stainless steel.
Can the mesh size be customized?+
Yes. Mesh sizes are selected according to product requirements.
Is the machine GMP compliant?+
Yes. Universe Mach Works manufactures GMP-compliant Vibro Sifters.
How often should the mesh be replaced?+
Replace it when damaged or after extended use depending on production volume.
Is the Vibro Sifter easy to clean?+
Yes. Quick-release clamps allow fast dismantling and cleaning.
What capacity is available?+
Capacities range from small laboratory units to large industrial machines exceeding 5,000 kg/hr.
Can it screen liquids?+
Yes. Special configurations are available for liquid filtration applications.
Does Universe Mach Works provide customized machines?+
Yes. Machines can be customized according to capacity, mesh size, material grade, and production requirements.
Conclusion
A Vibro Sifter Machine is an indispensable piece of equipment for manufacturers seeking precise particle separation, improved product quality, and efficient production. Its versatility makes it suitable for pharmaceutical, food, cosmetic, chemical, herbal, and nutraceutical applications, while its hygienic design ensures compliance with stringent industry standards.
At Universe Mach Works, we combine advanced engineering with GMP-compliant manufacturing to deliver reliable, high-performance Vibro Sifter Machines tailored to your production needs. Ready to improve your screening efficiency? Contact Universe Mach Works today to request a quote or speak with our technical experts.
