Drying is one of the most critical processes in pharmaceutical manufacturing. Whether producing tablets, capsules, herbal extracts, chemicals, or food ingredients, removing moisture uniformly is essential to ensure product stability, shelf life, and quality.
A Tray Dryer Machine is one of the most reliable and widely used batch drying systems in pharmaceutical, food, chemical, cosmetic, nutraceutical, and herbal industries. It offers controlled hot air circulation that dries products evenly while preserving their physical and chemical properties.
At Universe Mach Works, we manufacture high-performance Tray Dryer Machines using premium SS304 and SS316 stainless steel, ensuring GMP-compliant construction, excellent thermal efficiency, and long service life. Our tray dryers are designed to meet the demanding requirements of modern pharmaceutical production facilities.
This comprehensive guide explains the working principle, applications, components, technical specifications, advantages, maintenance tips, buying guide, and FAQs related to Tray Dryer Machines.
What is a Tray Dryer Machine?
A Tray Dryer Machine is a batch-type industrial drying equipment used to remove moisture from powders, granules, tablets, chemicals, herbs, and food products by circulating hot air evenly inside an insulated chamber.
The material is placed on multiple perforated trays inside the drying chamber. Heated air is circulated using a blower, allowing moisture to evaporate while maintaining uniform drying throughout the batch.
Tray Dryers are widely preferred because they are simple to operate, energy-efficient, and suitable for drying heat-sensitive materials under controlled temperatures.

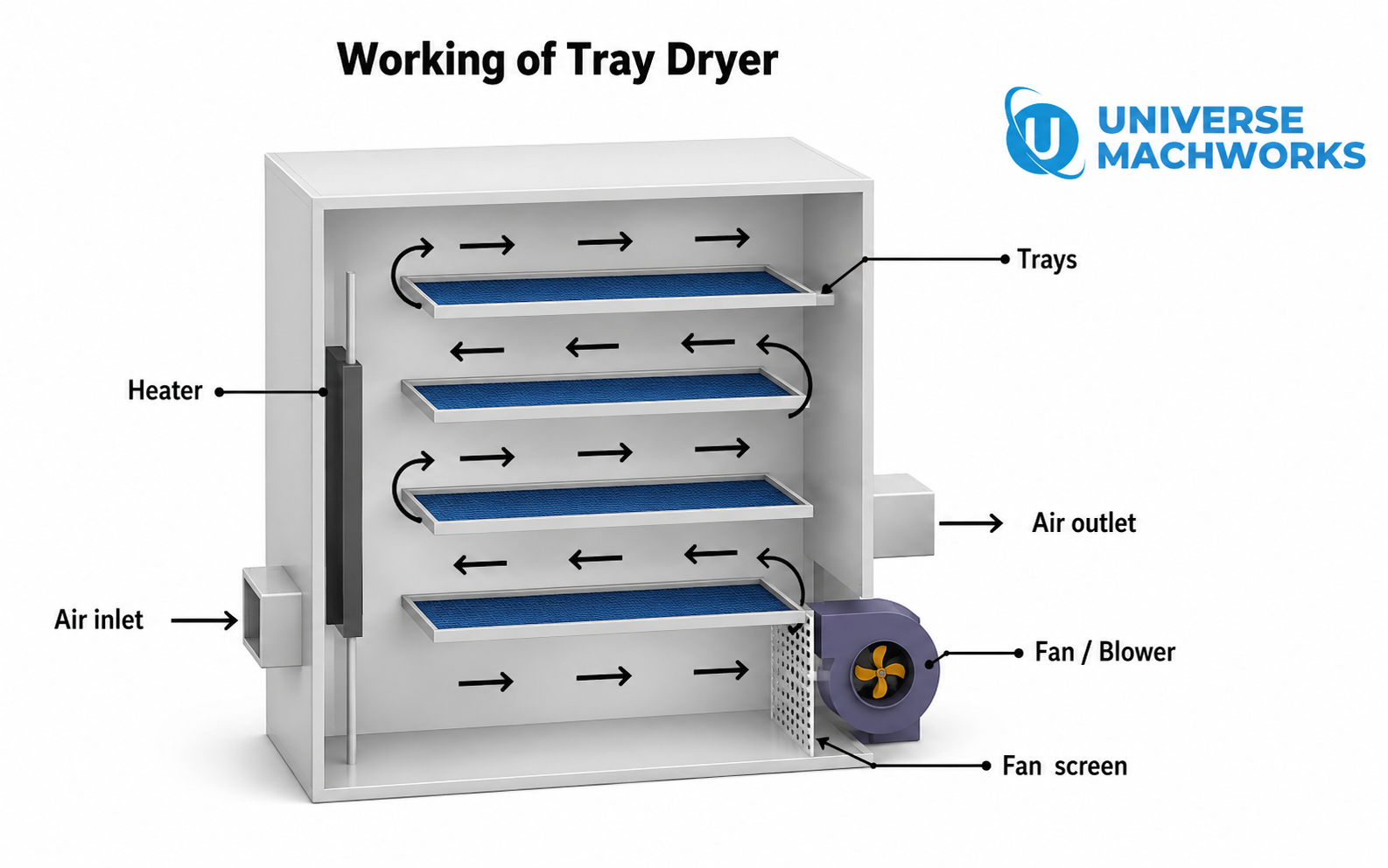

Working Principle of a Tray Dryer Machine
A Tray Dryer operates using the principle of forced hot air circulation.
Step 1 – Product Loading
The wet material is evenly spread on stainless steel trays and loaded into the drying chamber.
Step 2 – Hot Air Generation
Electric heaters or steam heating systems generate controlled hot air.
Step 3 – Air Circulation
A blower circulates hot air uniformly throughout the chamber, ensuring every tray receives equal airflow.
Step 4 – Moisture Removal
The hot air evaporates moisture from the product, while the exhaust system removes humid air from the chamber.
Step 5 – Product Unloading
Once the desired moisture level is achieved, the trays are removed, and the dried product is ready for the next manufacturing stage.
Main Components
- Drying Chamber
- Stainless Steel Trays
- Heating System
- Air Circulation Blower
- Insulated Cabinet
- Digital Temperature Controller
- Exhaust Dampers
- Control Panel
- Door Locking System
- Safety Thermostat
Technical Specifications
| Feature | Specification |
|---|---|
| Construction | SS304 / SS316L |
| Capacity | 12, 24, 48, 96, 192 Trays (Customized) |
| Heating | Electric / Steam |
| Temperature Range | Ambient to 150°C |
| Air Circulation | Forced Air |
| Product Contact Parts | SS316L |
| Insulation | Glass Wool / Rock Wool |
| Surface Finish | Mirror Polish |
| Compliance | GMP / cGMP |
| Custom Sizes | Available |
Applications
Pharmaceutical Industry
- Tablet Granules
- Capsule Powders
- Herbal Extracts
- API Drying
- Ointment Ingredients
- Excipients
Food Industry
- Fruits
- Vegetables
- Spices
- Tea
- Coffee
- Dry Fruits
Nutraceutical Industry
- Protein Powders
- Herbal Supplements
- Vitamin Premixes
Cosmetic Industry
- Herbal Powders
- Cosmetic Ingredients
- Natural Extracts
Chemical Industry
- Pigments
- Fine Chemicals
- Specialty Chemicals
- Industrial Powders
Advantages of Tray Dryer Machine
- Uniform drying
- Easy operation
- Low maintenance
- High thermal efficiency
- Controlled temperature
- Energy-efficient design
- GMP-compliant construction
- Stainless steel body
- Fast drying cycles
- Long equipment life
- Suitable for heat-sensitive materials
- Excellent product quality
- Minimal product contamination
- Easy cleaning
- Compact footprint
- Reliable performance
Tray Dryer vs Fluid Bed Dryer
| Feature | Tray Dryer | Fluid Bed Dryer |
|---|---|---|
| Drying Method | Static Batch | Fluidized Drying |
| Product Type | Powders, Herbs, Chemicals | Granules |
| Initial Cost | Lower | Higher |
| Energy Consumption | Moderate | Higher |
| Maintenance | Low | Moderate |
| Batch Size | Flexible | Fixed |
| Best For | Pharmaceutical, Food & Herbal | Tablet Granules |
Why Choose Universe Mach Works?
Universe Mach Works manufactures premium-quality Tray Dryer Machines that deliver consistent drying performance with excellent energy efficiency.
- GMP-compliant manufacturing
- SS304 & SS316 construction
- Uniform hot air circulation
- Digital temperature controls
- Customized tray capacities
- Heavy-duty insulation
- Low maintenance
- Competitive pricing
- Pan India supply
- Reliable after-sales support
Buying Guide
- Capacity – choose the number of trays according to production requirements.
- Heating System – select electric or steam heating depending on utility availability.
- Construction Material – use SS316L for pharmaceutical applications.
- Temperature Control – digital controllers ensure accurate drying.
- Airflow Design – uniform airflow improves drying consistency.
- Energy Efficiency – choose insulated models with optimized air circulation.
- Compliance – ensure GMP and cGMP standards.
- Customization – select tray sizes, heating systems, and automation according to your process.
Maintenance Tips
- Clean trays after every batch
- Inspect heaters regularly
- Check blower performance
- Clean air filters
- Inspect insulation
- Verify temperature sensors
- Tighten electrical connections
- Lubricate blower bearings
- Check door seals
- Remove product residue
- Calibrate controllers periodically
- Inspect exhaust dampers
- Replace worn gaskets
- Follow preventive maintenance schedules
- Use genuine spare parts
Common Problems & Solutions
| Problem | Cause | Solution |
|---|---|---|
| Uneven drying | Poor airflow | Inspect blower |
| Slow drying | Low temperature | Check heaters |
| Temperature fluctuation | Faulty sensor | Replace sensor |
| Excessive drying time | Overloaded trays | Reduce load |
| High power consumption | Dirty filters | Clean filters |
| Heat leakage | Damaged door seal | Replace gasket |
Industries Served
- Pharmaceutical Manufacturing
- Food Processing
- Nutraceutical Industry
- Herbal Products
- Ayurvedic Medicine
- Cosmetic Manufacturing
- Chemical Processing
- Biotechnology
- Research Laboratories
- Fine Chemical Plants
Explore the Product
Tray Dryer by Universe Mach Works
View technical specifications, applications and request a customized quote.
View Tray DryerFrequently Asked Questions
What is a Tray Dryer Machine?+
A Tray Dryer is an industrial drying machine that removes moisture from products using controlled hot air circulation.
Which industries use Tray Dryers?+
Pharmaceutical, food, cosmetic, chemical, nutraceutical, herbal, and biotechnology industries.
What materials can be dried?+
Powders, granules, herbs, spices, tablets, chemicals, food ingredients, and pharmaceutical intermediates.
What heating systems are available?+
Electric heating and steam heating options are available.
Is the machine GMP compliant?+
Yes. Universe Mach Works manufactures Tray Dryers according to GMP and cGMP standards.
What material is used for construction?+
SS304 and SS316L stainless steel.
Can the machine be customized?+
Yes. Capacity, tray size, heating system, insulation, and automation can all be customized.
How many trays are available?+
Standard models include 12, 24, 48, 96, and 192 trays, with larger capacities available on request.
Is it suitable for pharmaceutical manufacturing?+
Yes. Tray Dryers are widely used for drying pharmaceutical powders, granules, APIs, herbal extracts, and intermediates.
How often should maintenance be performed?+
Routine cleaning after every batch and preventive maintenance at scheduled intervals ensure long-term reliability.
Conclusion
A Tray Dryer Machine remains one of the most dependable drying solutions for pharmaceutical, food, cosmetic, chemical, and nutraceutical manufacturers. Its simple operation, uniform drying performance, energy efficiency, and GMP-compliant design make it an essential part of modern production facilities.
At Universe Mach Works, we manufacture precision-engineered Tray Dryer Machines that deliver consistent performance, low maintenance, and long service life. Whether you need a standard model or a fully customized drying solution, our engineering team can help you select the right machine for your manufacturing process.
Looking for a trusted Tray Dryer Machine Manufacturer in India? Contact Universe Mach Works today to request a quotation, discuss your production requirements, or explore our complete range of pharmaceutical processing machinery.
