Uniform mixing is one of the most important processes in pharmaceutical manufacturing. Whether producing tablets, capsules, nutraceutical powders, food ingredients, cosmetics, or specialty chemicals, achieving a consistent blend directly impacts product quality, process efficiency, and regulatory compliance.
A Ribbon Blender Machine is one of the most widely used industrial mixing machines for dry powders and granules. It provides fast, gentle, and homogeneous mixing while preserving the properties of delicate materials. Thanks to its simple design, high efficiency, and low maintenance, the Ribbon Blender has become a preferred choice across pharmaceutical, food, chemical, cosmetic, and nutraceutical industries.
At Universe Mach Works, we manufacture premium-quality Ribbon Blender Machines using SS304 and SS316 stainless steel with GMP-compliant construction, precision engineering, and customized capacities to meet diverse industrial applications.
What is a Ribbon Blender Machine?
A Ribbon Blender Machine is a horizontal mixing machine designed for blending dry powders, granules, and free-flowing materials with exceptional uniformity. It features a U-shaped trough fitted with an inner and outer helical ribbon mounted on a horizontal shaft.
As the shaft rotates, the outer ribbon moves material toward the center while the inner ribbon pushes it toward the ends. This counter-flow movement creates a three-dimensional mixing action that produces a highly homogeneous blend within a short mixing cycle.
Ribbon Blenders are widely used in pharmaceutical manufacturing for blending excipients, active pharmaceutical ingredients (APIs), tablet granules, and capsule powders before further processing.
Working Principle
The Ribbon Blender works using a dual helical ribbon agitator that creates efficient axial and radial movement of materials.
Step 1 – Material Loading
Raw materials are loaded into the mixing chamber through the top inlet.
Step 2 – Ribbon Rotation
The electric motor rotates the ribbon shaft through a gearbox.
Step 3 – Three-Dimensional Mixing
The outer ribbon moves materials toward the center while the inner ribbon pushes them outward. This continuous movement eliminates dead zones and ensures uniform mixing.
Step 4 – Discharge
Once the desired mixing time is achieved, the blended product is discharged through the bottom outlet valve for the next manufacturing process.

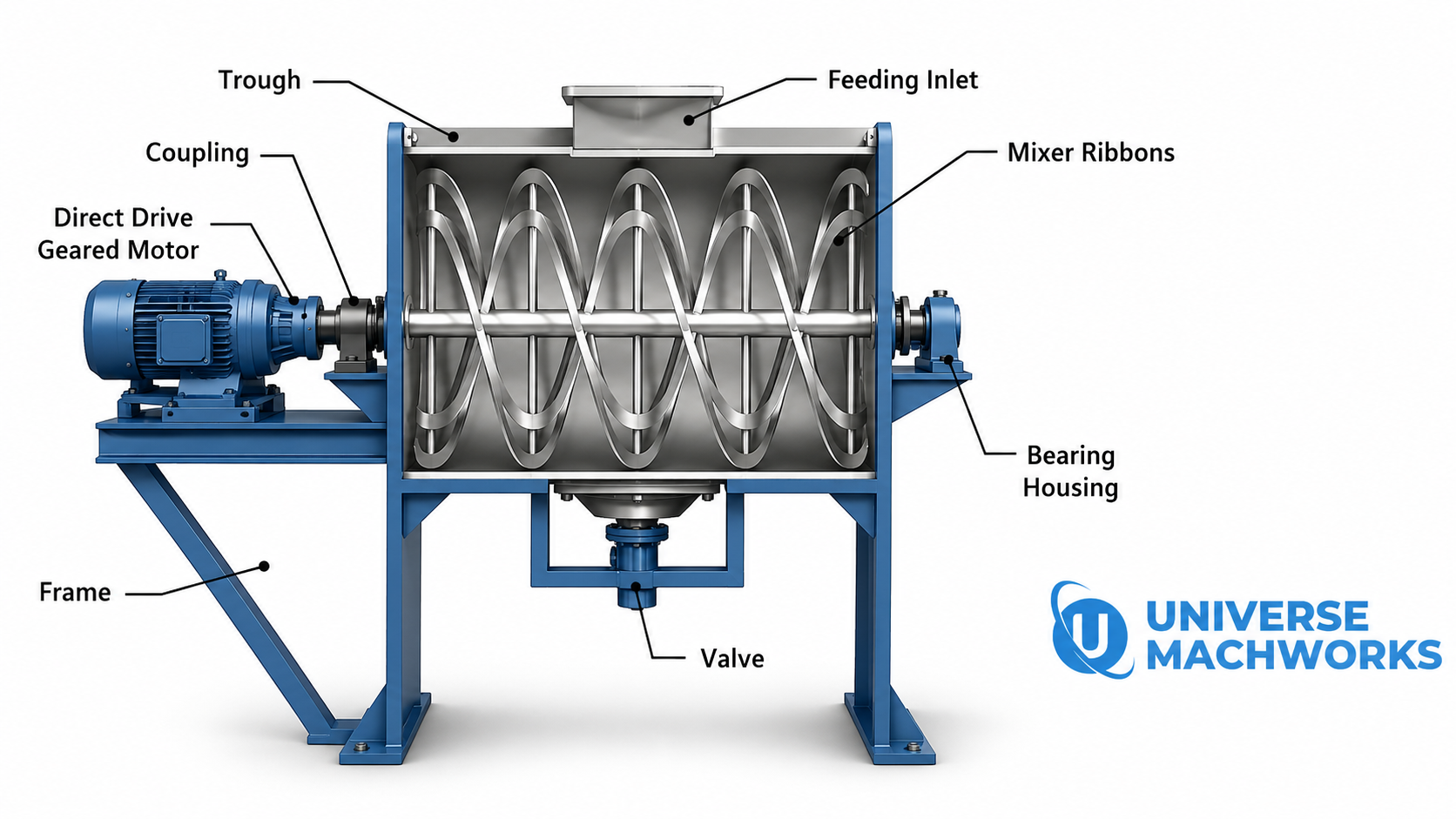

Main Components
- U-Shaped Mixing Trough
- Inner Ribbon
- Outer Ribbon
- Heavy-Duty Shaft
- Gearbox
- Electric Motor
- Bottom Discharge Valve
- Safety Cover
- Control Panel
- Machine Frame
Technical Specifications
| Feature | Specification |
|---|---|
| Construction | SS304 / SS316L |
| Capacity | 50–5000 Litres |
| Mixing Type | Horizontal Ribbon |
| Product Contact Parts | SS316L |
| Motor | Industrial Duty |
| Surface Finish | Mirror Polish |
| Operation | Batch Type |
| Discharge | Bottom Valve |
| Compliance | GMP / cGMP |
| Custom Sizes | Available |
Applications
Pharmaceutical Industry
- Tablet Powder Mixing
- Capsule Powder Blending
- API Mixing
- Dry Granule Blending
- Herbal Powder Mixing
- Excipient Preparation
Food Industry
- Flour
- Spices
- Protein Powder
- Instant Food Mixes
- Coffee Powder
- Beverage Premixes
Nutraceutical Industry
- Health Supplements
- Vitamin Premixes
- Protein Formulations
- Dietary Supplements
Cosmetic Industry
- Face Powder
- Talcum Powder
- Cosmetic Pigments
- Herbal Cosmetic Powders
Chemical Industry
- Pigments
- Fertilizers
- Resins
- Detergent Powder
- Industrial Chemicals
Advantages of Ribbon Blender Machine
- Excellent mixing uniformity
- Fast batch processing
- Low energy consumption
- Gentle product handling
- High production capacity
- Easy cleaning
- Low maintenance
- Hygienic stainless steel construction
- Compact design
- Reliable operation
- Long equipment life
- GMP-compliant design
- Minimal product degradation
- Easy discharge
Why Choose Universe Mach Works?
- GMP-compliant manufacturing
- SS304 & SS316L construction
- Heavy-duty gearboxes
- Precision ribbon design
- Customized capacities
- Quality-tested components
- Reliable after-sales support
- Competitive pricing
- Fast delivery
- Pan India service
Buying Guide
- Production Capacity – match machine size to daily output.
- Material Characteristics – density, particle size, flow properties.
- Construction Material – SS316L for pharma and food grade.
- Mixing Time – varies by formulation.
- Discharge System – valve type to suit the production line.
- Automation – manual, PLC or HMI controls.
- Compliance – GMP and cGMP standards.
Maintenance Tips
- Clean the machine after every batch
- Inspect ribbons for wear
- Lubricate bearings regularly
- Check gearbox oil level
- Tighten bolts and fasteners
- Inspect seals and gaskets
- Clean discharge valves
- Monitor motor performance
- Avoid overloading
- Schedule preventive maintenance
- Inspect shaft alignment
- Use recommended lubricants
Common Problems & Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven mixing | Incorrect mixing time | Increase mixing cycle |
| Material residue | Poor discharge | Clean outlet valve |
| Excess vibration | Loose bolts | Tighten fasteners |
| Motor overheating | Overloading | Reduce batch size |
| Noise from gearbox | Low lubrication | Refill gearbox oil |
| Product contamination | Poor cleaning | Clean thoroughly after each batch |
Ribbon Blender vs Other Mixing Machines
| Machine | Best For | Main Advantage |
|---|---|---|
| Ribbon Blender | Dry powders & granules | Fast, uniform mixing |
| Double Cone Blender | Fragile powders | Gentle blending |
| Octagonal Blender | Pharmaceutical powders | Low shear mixing |
| V Blender | Free-flowing powders | Uniform blending |
| Planetary Mixer | High-viscosity products | Heavy-duty mixing |
Industries Served
- Pharmaceutical Manufacturing
- Food Processing
- Nutraceutical Industry
- Cosmetic Manufacturing
- Chemical Processing
- Herbal Products
- Ayurvedic Manufacturing
- Agro Chemicals
- Biotechnology
- Fine Chemicals
Explore the Product
Ribbon Blender by Universe Mach Works
View technical specifications, applications and request a customized quote.
View Ribbon BlenderFrequently Asked Questions
What is a Ribbon Blender Machine?+
A Ribbon Blender Machine is a horizontal powder mixer used for blending powders and granules uniformly.
What materials can be mixed?+
Powders, granules, spices, pharmaceutical ingredients, food premixes, chemicals, and nutraceutical products.
Which industries use Ribbon Blenders?+
Pharmaceutical, food, cosmetic, nutraceutical, chemical, herbal, and biotechnology industries.
What material is used for construction?+
SS304 and SS316L stainless steel.
Is the Ribbon Blender GMP compliant?+
Yes. Universe Mach Works manufactures GMP-compliant Ribbon Blenders.
What capacities are available?+
Machines are available from 50 litres to 5000 litres or customized capacities.
Can sticky materials be processed?+
Ribbon Blenders are primarily designed for dry powders and granules. For highly viscous products, other mixers may be more suitable.
Is customization available?+
Yes. We provide customized ribbon designs, capacities, discharge systems, and automation options.
How often should maintenance be performed?+
Routine cleaning after every batch and preventive maintenance according to operating hours are recommended.
How long does a Ribbon Blender last?+
With proper maintenance, a high-quality Ribbon Blender can provide reliable service for many years.
Conclusion
A Ribbon Blender Machine is an essential mixing solution for industries that require fast, accurate, and homogeneous blending of powders and granules. Its efficient ribbon design, low maintenance requirements, and versatile applications make it one of the most valuable machines in pharmaceutical, food, cosmetic, nutraceutical, and chemical manufacturing.
At Universe Mach Works, we manufacture precision-engineered Ribbon Blender Machines that combine robust construction, GMP-compliant design, and reliable performance. Looking for a trusted Ribbon Blender Machine Manufacturer in India? Contact Universe Mach Works today to request a quote or explore our complete range of pharmaceutical processing machinery.
