Uniform blending is one of the most critical operations in pharmaceutical manufacturing. Whether producing tablets, capsules, nutraceutical supplements, food powders, or chemical formulations, achieving a homogeneous mixture directly impacts product quality, dosage accuracy, and regulatory compliance.
Among the various blending solutions available today, the Octagonal Blender is one of the most efficient and widely used machines for dry powder mixing. Its unique octagonal-shaped mixing vessel, combined with gentle tumbling action, ensures excellent blending without damaging fragile particles or generating excessive heat.
Widely used across pharmaceutical, food, cosmetic, nutraceutical, and chemical industries, the Octagonal Blender is valued for its high mixing efficiency, low maintenance, and GMP-compliant design. This comprehensive guide explains everything you need to know about Octagonal Blender Machines, including their working principle, components, applications, advantages, technical specifications, maintenance, buying guide, and frequently asked questions.
What is an Octagonal Blender?
An Octagonal Blender is a slow-speed powder blending machine designed to mix dry powders and granules uniformly. The blender consists of an octagonal-shaped stainless steel vessel that rotates around its horizontal axis, allowing materials to tumble and intermix naturally.
Unlike high-speed mixers, an Octagonal Blender relies on gravity and gentle tumbling rather than aggressive mechanical agitation. This results in excellent blend uniformity while preserving particle integrity, making it particularly suitable for pharmaceutical applications.
Working Principle of an Octagonal Blender
The Octagonal Blender works on the principle of slow rotational tumbling. Raw materials are loaded into the octagonal mixing chamber. As the vessel rotates at a controlled speed, the powder repeatedly rises and falls due to gravity. The unique eight-sided geometry continuously changes the direction of material flow, producing multidirectional movement and thorough mixing.
This gentle blending action minimizes heat generation, dust formation, and particle degradation while ensuring excellent content uniformity.

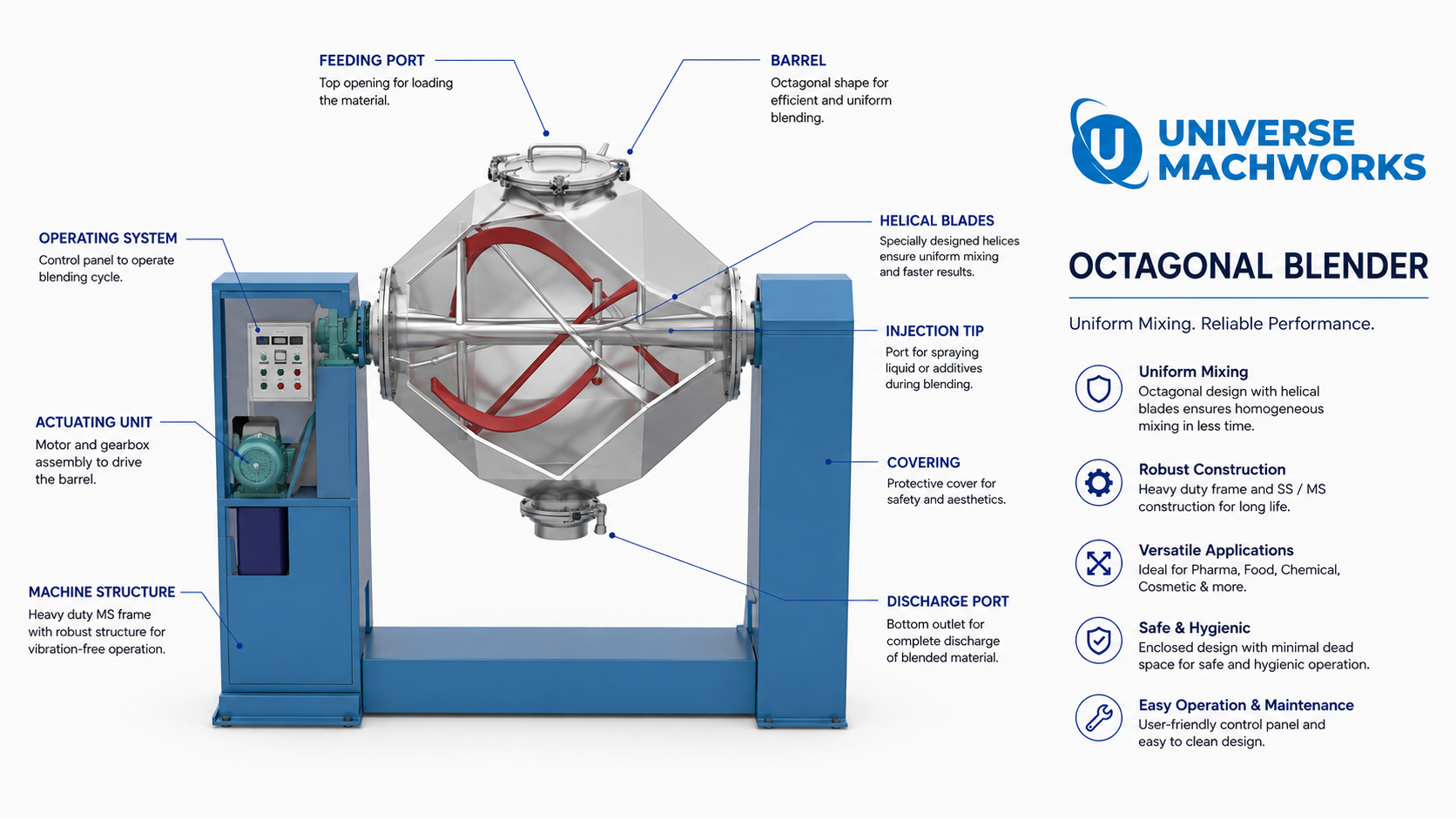

Main Components of an Octagonal Blender
- Octagonal Mixing Vessel (SS304 / SS316, mirror-polished)
- Drive Motor for controlled rotation
- Gearbox Assembly for smooth blending
- Charging Port for loading powders
- Discharge Valve for hygienic unloading
- Safety Guards for operator protection
- Control Panel with timer, VFD and emergency stop
- Heavy-duty support frame
How Does an Octagonal Blender Work?
- Load powders or granules through the charging port.
- Secure the lid.
- Start the machine.
- The vessel rotates slowly.
- Material tumbles continuously due to gravity.
- Uniform mixing is achieved.
- Stop rotation after the preset time.
- Discharge the blended material through the outlet valve.
Applications of Octagonal Blender Machines
Pharmaceutical Industry
- Tablet powder blending
- Capsule formulation mixing
- API blending
- Excipient mixing
- Dry granulation
- Final blend preparation
Nutraceutical Industry
- Protein powders
- Herbal supplements
- Vitamin formulations
- Dietary supplements
Food Industry
- Spice blending
- Instant beverage powders
- Flour premixes
- Milk powder mixing
- Bakery ingredients
Cosmetic Industry
- Face powders
- Talcum powder
- Cosmetic pigments
- Herbal cosmetic blends
Chemical Industry
- Pigments
- Fertilizers
- Industrial powders
- Fine chemicals
Advantages of an Octagonal Blender
- Excellent blend uniformity
- Gentle powder handling
- Low heat generation
- Minimal particle degradation
- Reduced segregation
- Dust-free operation
- Low maintenance
- Energy-efficient
- Easy cleaning
- GMP-compliant construction
- Corrosion-resistant stainless steel
- Long operational life
- Suitable for free-flowing powders and granules
Features of Universe Mach Works Octagonal Blender
- GMP-compliant design
- SS304 / SS316 contact parts
- Heavy-duty gearbox
- Variable speed option (VFD)
- Mirror-polished finish
- Easy charging and discharge
- Leak-proof sealing
- Low noise operation
- Easy cleaning and maintenance
- Custom capacities available
Industries Using Octagonal Blenders
- Pharmaceutical manufacturing
- Nutraceutical production
- Food processing
- Cosmetic manufacturing
- Chemical processing
- Herbal medicine production
- Biotechnology
- Research laboratories
Octagonal Blender vs V Blender
| Feature | Octagonal Blender | V Blender |
|---|---|---|
| Mixing Action | Gentle tumbling | Twin-shell tumbling |
| Blend Uniformity | Excellent | Excellent |
| Particle Damage | Very Low | Very Low |
| Cleaning | Easy | Easy |
| Pharmaceutical Use | Widely Used | Widely Used |
| Batch Capacity | Medium to Large | Medium |
Octagonal Blender vs Ribbon Blender
| Feature | Octagonal Blender | Ribbon Blender |
|---|---|---|
| Mixing Type | Tumble Mixing | Mechanical Mixing |
| Heat Generation | Very Low | Moderate |
| Powder Damage | Minimal | Slightly Higher |
| Mixing Speed | Slow | Fast |
| Suitable For | Free-flowing powders | Cohesive powders |
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | SS304 / SS316 |
| Capacity | 50–3000 Litres (Custom Available) |
| Mixing Type | Batch |
| Rotation Speed | Low RPM |
| Drive | Geared Motor |
| Finish | Mirror Polish |
| Compliance | GMP |
Factors to Consider Before Buying an Octagonal Blender
- Batch capacity
- Powder characteristics
- Blender volume
- Stainless steel grade
- Motor power
- Discharge system
- Cleaning requirements
- GMP compliance
- Safety features
- After-sales support
Maintenance Tips
Daily
- Clean the vessel thoroughly.
- Remove residual powder.
- Inspect seals.
Weekly
- Check gearbox oil.
- Inspect drive components.
- Verify safety guards.
Monthly
- Lubricate moving parts.
- Check electrical connections.
- Inspect discharge valve.
Annual
- Service gearbox.
- Replace worn seals.
- Calibrate controls.
Common Problems and Solutions
| Problem | Cause | Solution |
|---|---|---|
| Poor blending | Overfilled vessel | Reduce batch size |
| Powder leakage | Damaged gasket | Replace seal |
| Excessive vibration | Loose fasteners | Tighten components |
| Noise | Gear wear | Service gearbox |
| Uneven discharge | Blocked outlet | Clean discharge valve |
Safety Guidelines
- Do not overload the blender.
- Secure the lid before operation.
- Stop the machine before opening.
- Use recommended batch sizes.
- Wear PPE during operation.
- Follow preventive maintenance schedules.
- Ensure proper electrical grounding.
Why Choose Universe Mach Works?
Universe Mach Works designs and manufactures premium pharmaceutical blending equipment built for consistent performance and long service life. Our Octagonal Blenders offer:
- GMP-compliant construction
- SS304 / SS316 stainless steel
- Superior blending efficiency
- Custom-built capacities
- Robust geared drive
- Competitive pricing
- Reliable after-sales service
- Spare parts support
Whether you're blending pharmaceutical powders, nutraceutical formulations, food ingredients, or cosmetic materials, our Octagonal Blenders deliver uniform mixing with dependable performance.

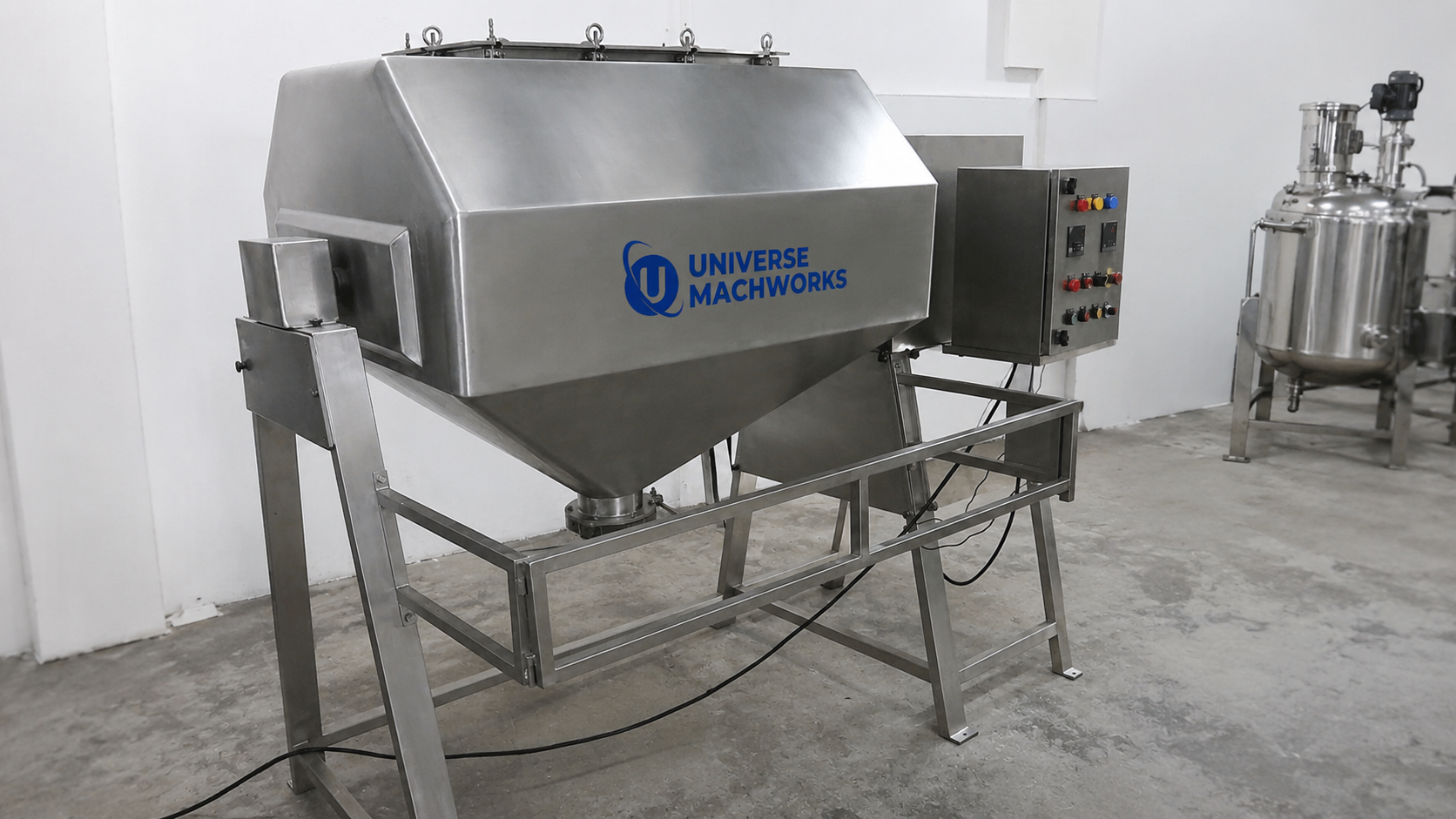

Explore the Product
Octagonal Blender by Universe Mach Works
View technical specifications, applications and request a customized quote.
View Octagonal BlenderFrequently Asked Questions
What is an Octagonal Blender used for?+
An Octagonal Blender is used to achieve uniform blending of dry powders and granules in pharmaceutical, food, cosmetic, and chemical industries.
Why is an Octagonal Blender preferred in pharmaceutical manufacturing?+
Its gentle tumbling action provides excellent blend uniformity while minimizing particle breakage and heat generation, helping maintain product quality.
What materials can be blended?+
Free-flowing powders, granules, excipients, APIs, nutraceutical ingredients, food powders, and cosmetic formulations.
Which stainless steel grade is recommended?+
SS316 is generally preferred for product-contact parts in pharmaceutical applications because of its enhanced corrosion resistance, while SS304 is widely used for non-contact structural components.
What is the difference between an Octagonal Blender and a Ribbon Blender?+
An Octagonal Blender uses slow tumbling for gentle mixing of free-flowing powders, whereas a Ribbon Blender uses internal ribbons for faster mechanical mixing of more cohesive materials.
Conclusion
An Octagonal Blender is one of the most reliable and efficient machines for achieving homogeneous dry powder blending in pharmaceutical and process industries. Its gravity-based tumbling action ensures excellent mixing uniformity, preserves particle integrity, and supports GMP-compliant manufacturing.
At Universe Mach Works, we manufacture high-quality Octagonal Blenders engineered for performance, hygiene, and durability. Available in a range of capacities with customizable options, our machines are designed to meet the demanding requirements of pharmaceutical, nutraceutical, food, cosmetic, and chemical production facilities.
