In pharmaceutical manufacturing, producing high-quality tablets begins with consistent granulation. One of the most important steps in the wet granulation process is preparing a uniform binder solution, commonly known as starch paste. This is where a Paste Kettle, also called a Starch Paste Kettle, becomes an essential piece of pharmaceutical process equipment.
Designed to heat, mix, and prepare starch-based binder solutions under controlled conditions, a Paste Kettle ensures uniform viscosity, prevents lump formation, and improves granule quality. It is widely used in pharmaceutical, nutraceutical, food, cosmetic, and chemical manufacturing facilities where controlled heating and mixing are required.
This guide explains everything you need to know about Paste Kettle Machines, including their working principle, components, applications, advantages, maintenance, selection criteria, and frequently asked questions.
What is a Paste Kettle?
A Paste Kettle is a stainless steel jacketed vessel equipped with an agitator and heating system that is used to prepare starch paste and other binder solutions for pharmaceutical tablet manufacturing. It provides controlled heating and continuous agitation to produce a smooth, lump-free binder with consistent viscosity.
Modern pharmaceutical Paste Kettles are manufactured from SS304 or SS316 stainless steel and comply with GMP requirements. Depending on production needs, they may use steam heating, electrical heating, or thermal oil heating.
Working Principle of a Paste Kettle
The Paste Kettle works on the principle of indirect jacket heating combined with continuous mechanical agitation.
Water and starch are charged into the vessel according to the formulation. Heat is transferred through the jacket while the agitator continuously stirs the mixture. The controlled heating causes starch granules to gelatinize, producing a smooth and homogeneous binder solution.
The prepared paste is then transferred to a Rapid Mixer Granulator (RMG) or other granulation equipment for the wet granulation process. Unlike direct heating, jacket heating distributes heat uniformly and prevents scorching or localized overheating.

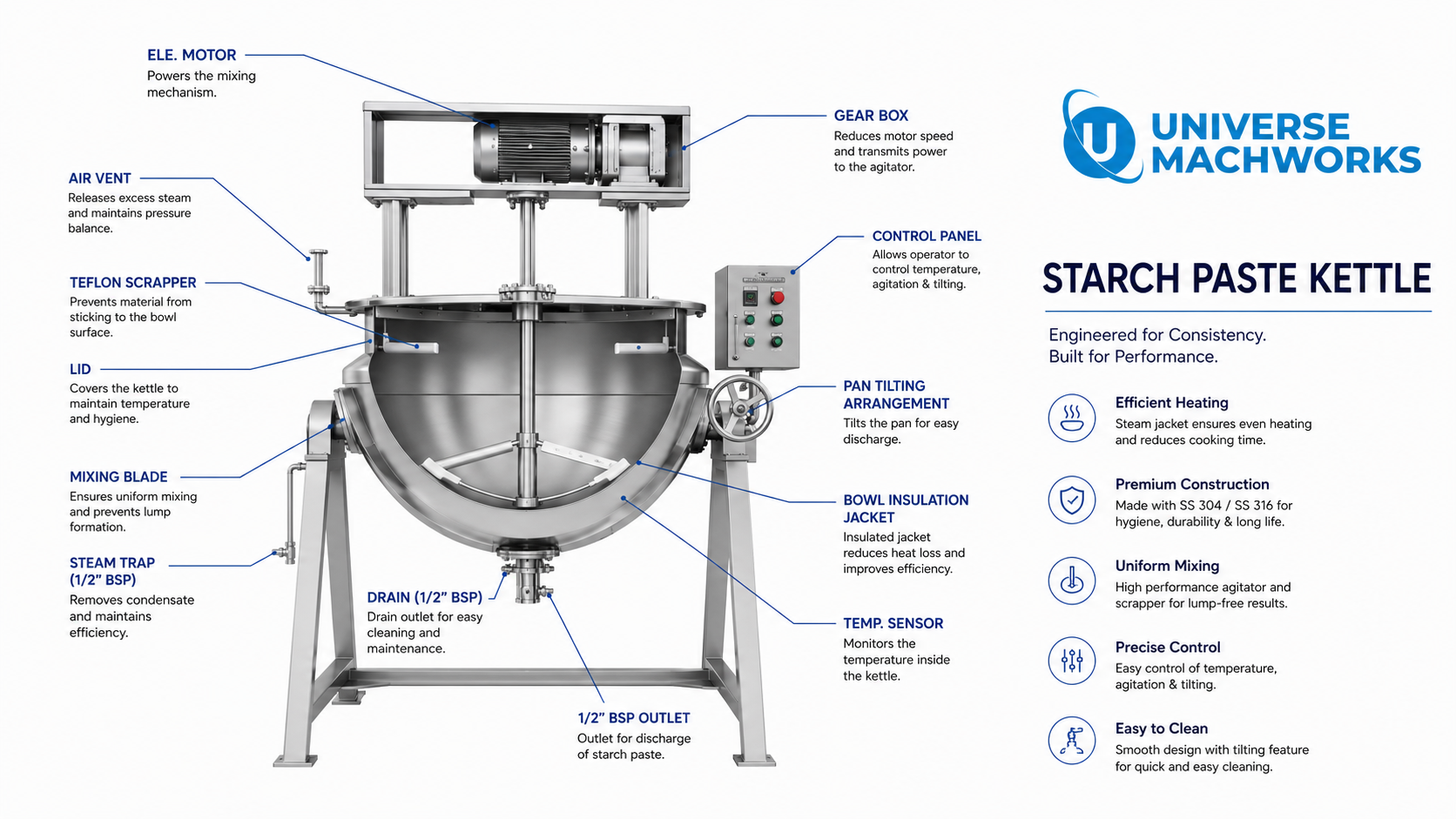

Main Components of a Paste Kettle
- Stainless Steel Vessel (SS304 / SS316, mirror polished)
- Heating Jacket (steam, electric or thermal oil)
- Agitator with Teflon Scrapper
- Heavy-Duty Gear Motor
- Temperature Control System
- Control Panel with Emergency Stop
- Pressure Gauge (steam models)
- Tilting Mechanism
- Bottom Outlet Valve
How Does a Paste Kettle Work?
- Fill the vessel with purified water
- Add starch or binder material gradually
- Start the agitator
- Heat the jacket to the required temperature
- Continue mixing until the starch gelatinizes
- Check the required viscosity
- Discharge the prepared binder into the granulation process
The result is a smooth, lump-free binder that improves granule quality and tablet compression.
Applications of Paste Kettle Machines
Pharmaceutical Industry
- Starch paste preparation
- Binder solution preparation
- Wet granulation
- Tablet manufacturing
- API processing
Nutraceutical Industry
- Vitamin granules
- Herbal supplements
- Nutritional tablets
Food Industry
- Syrups
- Thick sauces
- Food starch solutions
- Liquid food ingredients
Cosmetic Industry
- Cream bases
- Gel preparation
- Cosmetic emulsions
Chemical Industry
- Adhesives
- Polymer solutions
- Specialty chemical mixing
Advantages of a Paste Kettle
- Uniform heating through jacketed construction
- Consistent starch gelatinization
- Smooth, lump-free binder preparation
- Excellent mixing efficiency
- Hygienic GMP design
- Easy cleaning and maintenance
- Energy-efficient heating
- Reduced operator effort
- Improved granulation quality
- Robust stainless steel construction
- Long service life
- Suitable for batch production
Features of Universe Mach Works Paste Kettle
Universe Mach Works manufactures pharmaceutical Paste Kettles designed for reliable, repeatable binder preparation.
- GMP-compliant construction
- SS304 / SS316 contact parts
- Steam or electric jacket heating
- Precision temperature control
- Heavy-duty agitator
- Uniform mixing
- Tilting discharge mechanism
- Mirror-polished finish
- Easy cleaning
- Custom capacities available
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | SS304 / SS316 |
| Heating | Steam / Electric |
| Capacity | 25–500 Litres (Custom Available) |
| Agitation | Mechanical |
| Finish | Mirror Polish |
| Operation | Batch Type |
| Temperature Control | Digital Controller |
| Compliance | GMP |
Paste Kettle vs Mixing Tank
| Feature | Paste Kettle | Mixing Tank |
|---|---|---|
| Heating | Yes | Optional |
| Jacket | Yes | Optional |
| Agitation | Yes | Yes |
| Starch Paste Preparation | Excellent | Limited |
| Binder Preparation | Yes | No |
| Pharmaceutical Wet Granulation | Yes | Limited |
Industries Using Paste Kettles
- Pharmaceutical manufacturing
- Nutraceutical production
- Food processing
- Cosmetic manufacturing
- Chemical processing
- Herbal medicine production
- Biotechnology
Factors to Consider Before Buying
- Batch size
- Heating method (steam or electric)
- Vessel material (SS304 or SS316)
- Agitator design
- Temperature control accuracy
- Tilting mechanism
- GMP compliance
- Ease of cleaning
- Spare parts availability
- After-sales support
Maintenance Tips
Daily
- Clean the vessel after every batch
- Flush the outlet valve
- Remove product residue
Weekly
- Inspect agitator blades
- Check motor performance
- Verify temperature controller
Monthly
- Lubricate mechanical components
- Inspect heating jacket
- Tighten electrical connections
Annual
- Replace worn seals
- Service gear motor
- Calibrate temperature controller
Safety Guidelines
- Never operate the kettle without sufficient liquid
- Monitor jacket pressure on steam-heated models
- Wear appropriate PPE
- Avoid opening the lid during operation
- Ensure proper earthing before use
- Follow the manufacturer's maintenance schedule
Why Choose Universe Mach Works?
Universe Mach Works designs and manufactures GMP-compliant pharmaceutical process equipment trusted by manufacturers across India. Our Paste Kettles are engineered for efficient binder preparation, long service life, and easy operation.
- Custom-built capacities
- SS304 / SS316 construction
- Reliable heating systems
- Precision engineering
- Competitive pricing
- After-sales service
- Spare parts support
Explore the Product
Paste Kettle by Universe Mach Works
View technical specifications, applications and request a customized quote.
View Paste KettleFrequently Asked Questions
What is a Paste Kettle used for?+
A Paste Kettle is used to prepare starch paste and other binder solutions for wet granulation in tablet manufacturing.
Why is starch paste important in tablet production?+
Starch paste acts as a binder, helping powder particles adhere together to form strong, uniform granules before compression.
Can a Paste Kettle use electric heating?+
Yes. Paste Kettles are available with steam-heated and electrically heated jacket options.
Which material is best for a pharmaceutical Paste Kettle?+
SS316 is generally preferred for product-contact parts due to its superior corrosion resistance, while SS304 is commonly used for non-contact components.
What industries use Paste Kettles?+
Pharmaceutical, nutraceutical, food, cosmetic, chemical, and herbal manufacturing industries.
Conclusion
A Paste Kettle (Starch Paste Kettle) is a critical piece of equipment in pharmaceutical wet granulation, ensuring consistent binder preparation through controlled heating and continuous agitation. By producing uniform starch paste with the right viscosity, it improves granule quality, enhances tablet strength, and supports reliable manufacturing.
At Universe Mach Works, we manufacture GMP-compliant Paste Kettles with robust stainless steel construction, efficient heating systems, and customizable capacities to meet diverse production requirements. Whether you need a compact unit for pilot batches or a large-capacity kettle for commercial manufacturing, our solutions are designed for dependable performance and long-term reliability.
